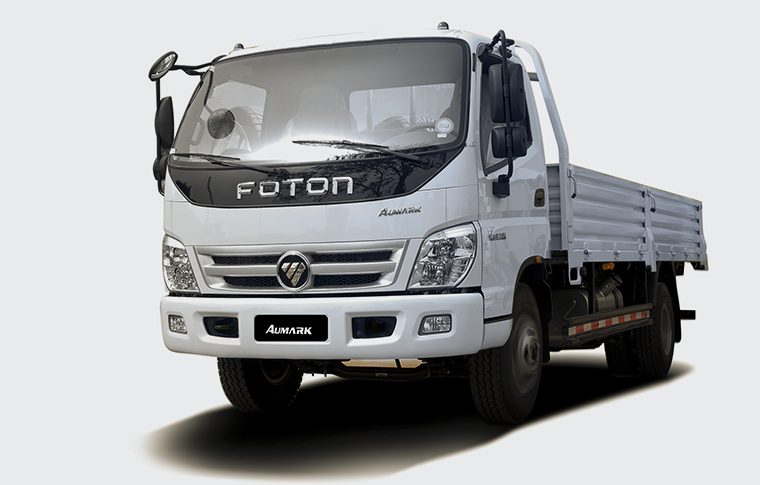

6 TONS SINGLE CABIN TRUCK
LIGHT-DUTY TRUCKS – AUMARK S
Cummins ISF2.8/3.8
The Aumark S is equipped with a Cummins ISF2.8 or 3.8 engine. Based on the collaboration with the joint venture Foton Cummins Engine Co., Ltd., Foton was able to bring to you this world-class, powerful engine. The engine was designed for light commercial vehicles. The result is an advanced four-cylinder lightweight diesel engine which is electronically controlled and features high-pressure, direct injection. The horsepower of the two engines is 107 and 168, respectively. The engine is very light and produces little noise. It matches the Euro III, and Euro IV emission standards and offers users an efficient and reliable engine with outstanding an fuel economy.
SAFE UTILITY
ABS +EBD
Equipped four-channel ABS + EBD, the Aumank S enables you to maintain steering wheel control and driving stability during heavy braking.
SRS
The driver airbags guarantee maximum protection during an accident or collision.
Three-point Seat Belts
Three-point pretensioner seat belts for all seats protect the personal safety of driver/passengers.
Hinge reinforcing plate and anticollision beam
The vehicle was constructed with new, special materials for a noticeable increase in durability. It employs the world’s leading suspension system for additional reliability.
Multifunctional Steering Wheel
The steering wheel is equipped with volume control, Bluetooth, cruise control and other common functions, making your driving experience convenient and safe.
Electril Window
Traditional crank handle bar levers have been upgraded to power windows for safety and ease of use.
| Vehicle brand | Aumark C | |
|---|---|---|
| Vehicle model | BJ 1089VEJEA-FA (CBU) | |
| With of cabin (mm) | L1995 | |
| Cabin | Single row seat tiltable | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 6995x2250x2350 |
| Inner dimensions of the cargo body (LxWxH)mm | 5150x2050x2350 | |
| Driving type | 4x2 | |
| Wheel base (mm) | 3900 | |
| Wheel track (front / rear) (mm) | 1685/1615 | |
| Min ground clearance (mm) | > 190 | |
| Weight data | Curb weight (kg) | 3650 |
| Rated payload (kg) | 6000 | |
| Persons in cab (person) | 3 | |
| Gross vehicle weight (kg) | 9650 | |
| Whole vehicle main performance | Max. speed (km / h) | 95 |
| Max. slope of climb (%) | >25 | |
| Fuel consumption (L / 100km) | <15 | |
| Min. turning diametre(m) | < 16 | |
| Engine | Model | ISF 3.8 (mechanically cummins) |
| Type | Four -cylinder, in-line, four stroke, turbocharging, intercooler | |
| Displacement (L) | 3.76 | |
| Rated power (kw)(rpm) | 105 (141HP)/2600 | |
| Max torque (Nm / rpm) | 450 / 1200-2200) | |
| Gearbox | Model | 651B |
| Speed ratio | I:5.513, Ii:3.417, III:2.115, IV:1381, V:1.000,VI:0.795, R:5.128 | |
| Clutch | Type | Φ330xΦ200 Single disc, dry type, diapharm, spring |
| Clutch | Clutch Type | Single, dry type diaphragm spring |
| Axle | Type / Main reducer ratio | whole banjo type / 4.875 |
| Front axle capacity (kg) | 2600 | |
| Rear axle capacity (kg) | 7050 | |
| Suspension | Front suspension / leaf spring number | non-independent suspension, with auxilliary leaf spring, 11 + 7 |
| Rear suspension / leaf spring number | Leaf spring , non-indenpendent suspension, with auxilliary leaf spring, 11+7 | |
| Steering gear | Mechanical circular ball with power steering | |
| Type | Drum brake (Dual circuits pneumatic brake) | |
| Brake system | Parking brake | Air cut brake |
| Auxilliary brake | Exhaust brake | |
| Wheels and type size | 6+1 / 8.25R16 | |
| Electric device | Rated voltage | 24V |
| Fuel tank (L) | 120 | |
| Basic equipment | Clutch booster, power steering, load sensing proportioning valve, heater, radio + MP3, IV/V rear mirror, side bumper, tachometer, maintenance-free battery | |
