MEDIUM & HEAVY-DUTY TRUCKS – ETX DUMP TRUCKS
MEDIUM & HEAVY-DUTY TRUCKS – ETX DUMP TRUCKS
ETX dump trucks feature a classic powertrain and advanced technologies, which includes the world’s leading transmissions and engines. ETX dump trucks have proven to be extremely reliable. ETX dump trucks are recommended for mining projects or sediment transport operations.ETX dump trucks are powered By Weichai Engines.
Weichai WD series engine
10-Liter to 12-Liter diesel engines (270-380 hp) are mature, tried-and-tested technology. ETX dump trucks handle well in various working conditions. Weichai WD series engines also perform at a lower RPM and with high torque, have quick acceleration and great climbing performance. Completely meets Euro-II emissions standards.
Weichai WP series engines
10-Liter to 12-Liter diesel engines. Engine displacement is greater than that of similar in-class products. Weichai engines, designed for long-distance dump truck working conditions, have a power output of 270-380 horsepower. Weichai engines feature high-pressure, electronically controlled fuel injection made specifically for large displacement engines. The engine structure is simplified and has fewer parts for lower maintenance costs. WP engines meet Euro-III or above emissions standards.
PERFORMANCE
Reliable Transmission
FAST-brand transmissions are small, lightweight and come in nine-speed or twelve-speed. FAST-brand transmissions have a main-box and an auxiliary-box twin-countershaft structure. FAST-brand transmissions are efficient and support high load capacity with low gear ratios; in addition, gears are fully synchronized, so getting into gear or shifting is simple.
Powerful
ETX dump trucks come equipped with 10-Liter to 12-Liter large displacement Cummins or Weichai engines, and engine displacement is larger than other in-class trucks. All ETX dump trucks meet the requirements of harsh off-highway dump truck working conditions, with power output ranging from 270-440 hp. ETX dump trucks feature FAST-brand twelve-speed, Synchromesh twin countershaft transmissions. FAST-brand Syncromesh transmissions are small and lightweight with torque output ranging from 1800-2000 Nm. FAST-brand Syncromesh transmissions, with a simple design, have few parts that require maintenance.
High Payload Capacity of Frame
Frame is made of a high-strength, single mold steel alloy with a width of up to 865 mm. Beams on the inside and outside are 8 mm + 7 mm thick and cannot be easily deformed. ETX dump trucks have a higher load capacity than other similar in-class trucks.
Large Clearance
Ground clearance is 320 mm high, 20mm higher than similar in-class trucks. High mounted front steel bumpers protect against unwieldy roads, even when under full load.
High Payload Capacity of Suspension
Suspension is strengthened with gusset plate to reduce frame flex.
Double U-Bolts are used to support the higher load.
Frame is strengthened with longer gusset plates and multiple layers of rivets, thus increasing the number of contact points with the subframe.
Mature Powertrain
ETX dump trucks are equipped with a classic powertrain and advanced technologies. Vehicles feature powerful Weichai engines, high-torque FAST transmissions as well as ANKAI rear axles. ETX trucks have proven reliable on the market and are a favorite choice among customers. ETX dump trucks are high performance and have been proven reliable. The standard parts are easily replaceable, thus lowering maintenance costs.

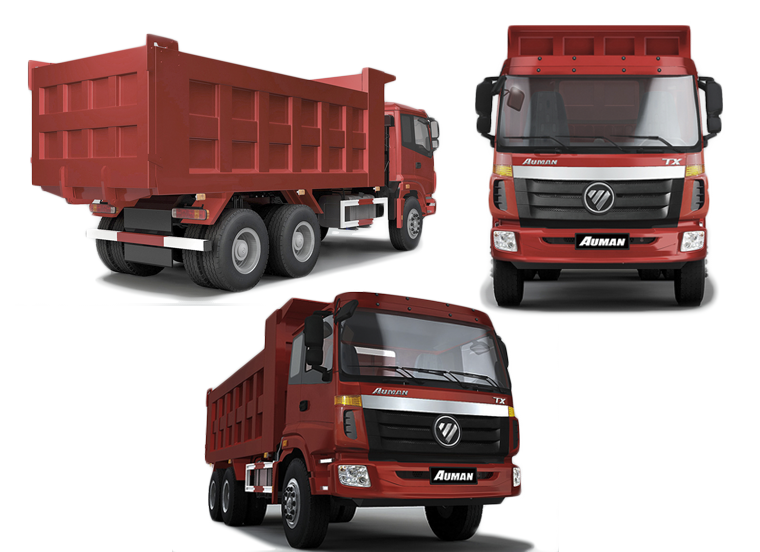

6x4 Dumper 340HP
| Basic Information | Function | Dumper | |
|---|---|---|---|
| Drive style | 6×4 | ||
| Steering wheel position | Left hand | ||
| Platform | ETX-2490 | ||
| Work conditions | Standard type | ||
| Vehicle model | BJ3253DLPJB-1 | ||
| Resource No. | 3253DLPJB-01ZA04 | ||
| Complete vehicle dimension parameter | Wheelbase (mm) | 3825+1350 | |
| long(mm) | 8480 | ||
| Dimension(mm) | width(mm) - 2495 | ||
| height(mm) - 3400 | |||
| long(mm) of the cargo body - 5600 | |||
| width(mm) the cargo body - 2300 | |||
| Payload(including staff)/kg - 1425 | |||
| height(mm) the cargo body - 1500 | |||
| Tread (front)(mm) - 2005 | |||
| Tread (rear) (mm) - 1880 | |||
| Minimum ground clearance(mm) - 314 | |||
| Chassis kerb weight（kg） - 10613 | |||
| Design load mass(kg) - 13125 | |||
| GVW(design)（kg )25000 | |||
| GVW（actual range）（t） - 32-52 | |||
| Maximum speed (km/h) - 77(5.73)/65(6.72) | |||
| Maximum climbing capacity, % (full load) - 30(5.73)/34.5(6.72) | |||
| Cab | Body type | ETX-2490 flat roof | |
| Carrying number | 3 | ||
| Engine | Engine Model | WD615.34 | |
| Engine Type | In-line,six-cylinder, water cooling, four-stroke, DI, turbocharging, intercooling, diesel engine | ||
| Displacement (L) | 9.726 | ||
| Max power (ps/rpm) | 250/340(2200) | ||
| Max torque (Nm/rpm) | 1350(1100-1600) | ||
| Engine Brand | WEI CHAI | ||
| Emission | Euro II | ||
| Clutch | Clutch Type | Single, dry type diaphragm spring | |
| Plate diameter | φ430 | ||
| Gearbox | Gearbox Model | RTD11509C（PTO） | |
| Gearbox ratios | i1:12.42,i2:8.3,i3:6.08,i4:4.54,i5:3.36,i6:2.47,i7:1.81,i8:1.35,i9:1,R1:12.99 | ||
| Gearbox Brand | FAST | ||
| Brake | Service brake | Dual circuits pneumatic brake | |
| Parking brake | Energy-accumulating spring air cut-off brake | ||
| Auxiliary brake | The engine exhaust brake | ||
| Suspension | Front suspension/leaf spring number | longitudinal leaf spring with dual acting telescopic shock absorbers and anti-roll bar,9 | |
| Rear suspension/leaf spring number | longitudinal leaf spring with balance Suspension and anti-roll bar/12 | ||
| Front axle | Front axle Rated load | 7.5T | |
| Front axle Brake type | Drum brakes | ||
| Rear axle | Rear axle Model | STR/16T double reduction | |
| Axle housing type | Casting axle | ||
| Rated load/gear ratio | 16T/5.73 | ||
| Rear axle Brake type | Drum brakes | ||
| Tyre | Rear axle Model | 13R22.5 | |
| Rear axle Quantity | 10+1 | ||
| Frame | External width (mm) | 865 | |
| Stringer cross section (mm) | 243/320X90X(8+7) | ||
| Steering Gear | Steering Gear Model | CQ8111d | |
| Fuel tank | Fuel tank Cubage and material | 350L Aluminum | |
| Electrical system | Rated voltage | 24V | |
| Battery | 2x12V-165Ah | ||
| Cargo box | long(mm) of the cargo body | 5600 | |
| width(mm) the cargo body | width(mm) the cargo body 2300 | ||
| height(mm) the cargo body | 1500 | ||
| Bottom Thickness(mm) | 8 | ||
| Side Thickness(mm) | 6 | ||
| Lifting Form | Middle lifting | ||
| Other configurations | two-point semi-floating suspension cab,cab manual turning,airbag seat,manual rear-view mirror glass lift, desert air fillter. | ||

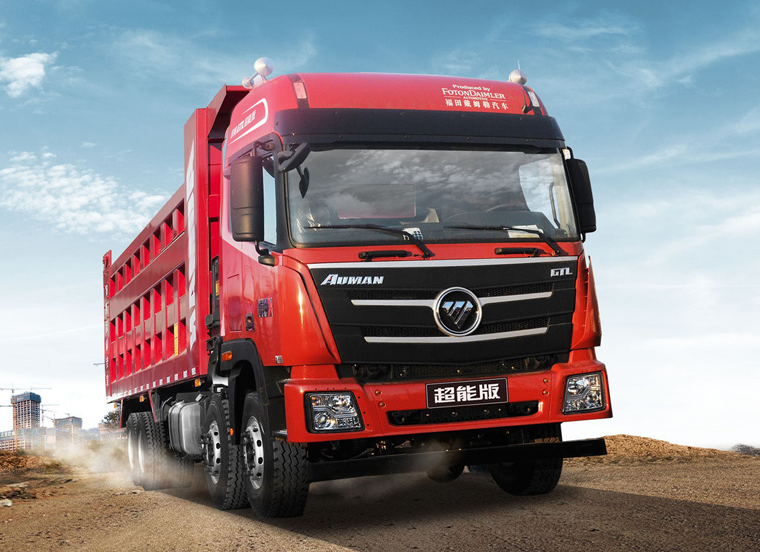

8x4 Dumper 375HP
| Basic Information | Function | Dumper | |
|---|---|---|---|
| Drive style | 6×4 | ||
| Steering wheel position | Left hand | ||
| Platform | ETX-2490 | ||
| Work conditions | Standard type | ||
| Vehicle model | BJ3253DLPJB-1 | ||
| Resource No. | 3253DLPJB-01ZA04 | ||
| Complete vehicle dimension parameter | Wheelbase (mm) | 3825+1350 | |
| long(mm) | 8480 | ||
| Dimension(mm) | width(mm) - 2495 | ||
| height(mm) - 3400 | |||
| long(mm) of the cargo body - 8000 | |||
| width(mm) the cargo body - 2300 | |||
| height(mm) the cargo body - 1500 | |||
| Tread (front)(mm) - 2005 | |||
| Tread (rear) (mm) - 1880 | |||
| Minimum ground clearance(mm) - 314 | |||
| Chassis kerb weight（kg） - 10550 | |||
| Design load mass(kg) - 15305 | |||
| GVW(design)（kg )31000 | |||
| GVW（actual range）（t） - 15-31 | |||
| Maximum speed (km/h) - 77(5.73)/65(6.72) | |||
| Maximum climbing capacity, % (full load) - 30(5.73)/34.5(6.72) | |||
| Cab | Body type | ETX-2490 flat roof | |
| Carrying number | 3 | ||
| Engine | Engine Model | WD12.375 | |
| Engine Type | In-line,six-cylinder, water cooling, four-stroke, DI, turbocharging, intercooling, diesel engine | ||
| Displacement (L) | 11.596 | ||
| Max power (ps/rpm) | 276/375(2200) | ||
| Max torque (Nm/rpm) | 1500(1300-1500) | ||
| Engine Brand | WEI CHAI | ||
| Emission | Euro II | ||
| Clutch | Clutch Type | Single, dry type diaphragm spring | |
| Plate diameter | φ430 | ||
| Gearbox | Gearbox Model | 12JSD220T（PTO） | |
| Gearbox ratios | i1:12.1,i2:9.41,i3:7.31,i4:5.71,i5:4.46,i6:3.48,i7:2.71,i8:2.11,i9:1.64,i10:1.28,i11:1,i12:0.78,R1:11.56,R2:2.59 | ||
| Gearbox Brand | FAST | ||
| Brake | Service brake | Dual circuits pneumatic brake | |
| Parking brake | Energy-accumulating spring air cut-off brake | ||
| Auxiliary brake | The engine exhaust brake | ||
| Suspension | Front suspension/leaf spring number | longitudinal leaf spring with dual acting telescopic shock absorbers and anti-roll bar,9 | |
| Rear suspension/leaf spring number | longitudinal leaf spring with balance Suspension and anti-roll bar/12 | ||
| Front axle | Front axle Rated load | 7.5T | |
| Front axle Brake type | Drum brakes | ||
| Rear axle | Rear axle Model | STR/16T double reduction | |
| Axle housing type | Casting axle | ||
| Rated load/gear ratio | 16T/5.73 | ||
| Rear axle Brake type | Drum brakes | ||
| Tyre | Rear axle Model | 13R22.5 | |
| Rear axle Quantity | 12+1 | ||
| Frame | External width (mm) | 865 | |
| Stringer cross section (mm) | 243/320X90X(8+7) | ||
| Steering Gear | Steering Gear Model | JL80Z | |
| Fuel tank | Fuel tank Cubage and material | 350L Aluminum | |
| Electrical system | Rated voltage | 24V | |
| Battery | 2x12V-165Ah | ||
| Cargo box | long(mm) of the cargo body | 8000 | |
| width(mm) the cargo body | width(mm) the cargo body 2300 | ||
| height(mm) the cargo body | 1500 | ||
| Bottom Thickness(mm) | 8 | ||
| Side Thickness(mm) | 6 | ||
| Lifting Form | Front lifting | ||
| Other configurations | two-point semi-floating suspension cab,cab manual turning,airbag seat,manual rear-view mirror glass lift, desert air fillter. | ||
