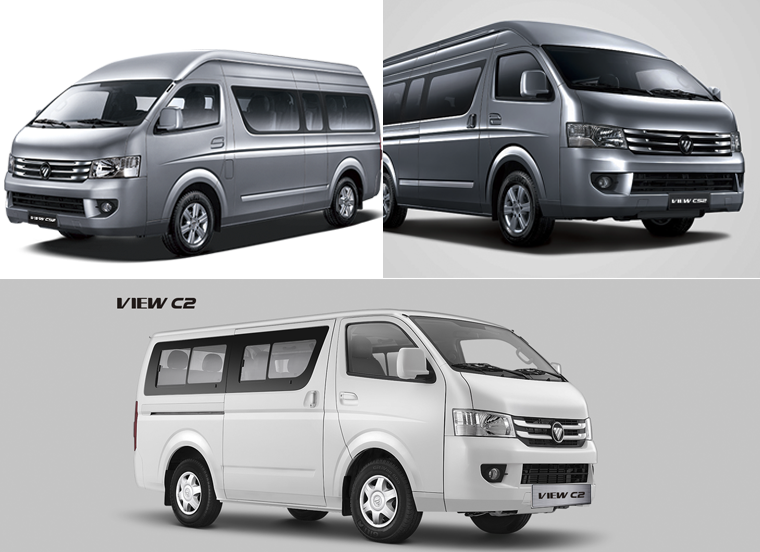

The VIEW CS2 is the 4th generation of Foton’s famous vans brand - VIEW. The VIEW CS2 has a great design and combines performance and comfort. Featuring leading technologies such as the Cummins engine, the vehicle provides enterprises, public agencies and individual customers with great value, high efficiency and a fantastic driving experience.

Diesel Engine

The View CS2’s powerful 120KW Cummins ISF 2.8 diesel engine is the strongest in the class of engines with displacements below 3.0L. It also has a maximum torque output of 360 N.m, which is 22.5%-60% higher compared to similar products. As a result, the Tunland can easily handle harsh road conditions.

The View CS2 features the latest turbocharger intake system. The electronically controlled, high-pressure common rail fuel injection system by BOSCH guarantees the best performance.

Modular design:
The powertrain is based on a modular design concept. It has 40% less components than other similar products. The engine is also 10% lighter than the ones used in similar pickup trucks. Thanks to its special design, it operates at extremely low noise and vibration levels. Maintenance of the engine is easy and cost efficient.

4G69 Gasoline Engine

This model features a 12-hole particle fuel injector and EFI technology.
The exhaust system features a dual tubular exhaust manifold with a catalyst converter.

The Intake system is based on the MIVEC (Mitsubishi Innovative Valve Timing Electronic Control) system with 4 cylinders and 16 valves.

2. 8 L Cummi ns engine.
18 SEATER (Available in Cargo Van)


Inherited from legacy and devoted to innovation,VIEW CS2 manifests an air of elegance in every designing detail. The pursuit of perfection in space, performance, safety, and workmanship never ends.

Brand VIEW CS2
Type BJ6549B1PDA-A
Body Wide-body & High roof
Back door Lifted back door
Sliding door Single sliding door
Model(CUMMINS) F2.8
Fuel type Diesel
Power(Kw/rpm) 96/3600
Torque(N·m/rpm) 280/(1400~3000)
Displacement(ml) 2780
Transmission 5MT
Main technical parameter
Dimension parameter
Design body external dimension(mm) 5380×1920×2285
Wheel base(mm) 3110
Mass parameter
Total mass (kg) 3400
Kerb mass(kg) 2255
Capacity (Person) 18
Type of the last seat Independent seats
Power performance
Max.speed(km/h) ≤150
Function configuration
Chasis system
Wheel assy Tyre 215/75R16C
Aluminium alloy
Interior trim
Type Ordinary gray
Full package interior
Polyurethane + non-woven
Steering wheel Adjustable
Genuine leather
Carpet assembly Chemical fiber
Seat fabric Knitting
The whole car seat belt
The number of sun visors 2
Body and accessories
Door handle Chromed
Door glass Tawny
Front and rear bumpers body coloured bumpers (without striae)
  Remote controlcentral locking (integrated key)
  Electric (Manual folding)
  Electric window
  Chrome casing
Rear attachment Rear wipe + Rear washer
Rear defroster
Rear mirror
Airbags Driver's air-bag assy. Assistant's driver air-bag
Reversing radar(singing)
Burglar alarm
Body sound and light alarms
Air-conditioner system Air conditioner Front and Rear
Warm braw Front and Rear
Each row independent outlet
Audio device Radio + AUX + USB
